OUR PRODUCTS

Premium Earthing Solutions for All Industries

High-quality materials designed for optimal electrical safety and lightning protection

Superior Quality Earthing Products

At Manidhari Metals, we offer a comprehensive range of earthing components manufactured using the finest materials. Our products meet international standards and are designed to provide reliable protection for electrical systems across various industries.

Copper Plate

High conductivity copper plates for superior grounding performance.

Material 99.9% Pure Copper

Standard Size 600mm x 600mm x 3mm

Conductivity 101% IACS

Standard Compliance IS 3043, IEEE 80

Copper Strip

Flexible copper strips for versatile earthing connections.

Material 99.9% Pure Copper

Standard Sizes 25mm x 3mm, 25mm x 6mm

Conductivity 101% IACS

Standard Compliance IS 3043, IEC 62561

Hot Dip GI Plate

Corrosion-resistant galvanized plates for long-lasting earthing.

Material Hot Dip Galvanized Iron

Standard Size 600mm x 600mm x 6mm

Coating Thickness 85-90 microns

Standard Compliance IS 3043, BS 7430

Hot Dip GI Flat

Durable galvanized flat conductors for earthing systems.

Material Hot Dip Galvanized Iron

Standard Sizes 25mm x 3mm, 25mm x 6mm

Coating Thickness 85-90 microns

Standard Compliance IS 3043, BS 7430

Copper Wire

High-quality copper wires for efficient grounding connections.

Material 99.9% Pure Copper

Standard Sizes 8 SWG, 10 SWG, 12 SWG

Conductivity 101% IACS

Standard Compliance IS 3043, IEC 62561

GI Pipe

Our hot-dip galvanized iron pipes provide exceptional corrosion resistance and durability for robust earthing installations.

Material Hot-Dip Galvanized Iron

Standard Sizes 40mm ⌀, 50mm ⌀, 80mm ⌀

Length 2m, 3m

Wall Thickness 3.2mm - 5.4mm

Coating Thickness 80-120 microns

Conductivity High

Standard Compliance IS 3043, BS 7430, IEEE 80

CI Pipe

Our premium cast iron pipes deliver exceptional durability and mechanical strength for long-lasting earthing installations.

Material Premium Grade Cast Iron

Standard Sizes 75mm ⌀, 100mm ⌀, 150mm ⌀

Length 1.5m, 2m

Wall Thickness 5mm - 8mm

Tensile Strength 150-250 MPa

Conductivity Moderate

Standard Compliance IS 3043, BS 7430, IEEE 80

Brass Wire

Our high-quality brass wire offers excellent conductivity combined with superior corrosion resistance for specialized electrical connections.

Material Copper-Zinc Alloy (65/35)

Standard Sizes 1.5mm², 2.5mm², 4mm², 6mm²

Tensile Strength 350-500 MPa

Temperature Rating -40°C to +125°C

Conductivity 28% IACS

Standard Compliance IS 3043, IEC 62561, ASTM B134

Aluminium Strip

Our high-grade aluminium strips provide a cost-effective yet reliable solution for earthing applications.

Material 99.5% Pure Aluminium

Standard Sizes 25mm x 3mm, 25mm x 6mm, 40mm x 5mm

Weight Advantage ~70% lighter than copper

Conductivity 61% IACS

Standard Compliance IS 3043, IEC 62561, IEEE 80

Copper Bonded Rod

Our copper bonded earthing rods combine a high-tensile steel core with molecularly bonded copper outer layer.

Material Steel Core with Copper Bonding

Standard Sizes 14mm ⌀, 17mm ⌀, 20mm ⌀

Length 1.2m, 1.8m, 2.4m, 3m

Copper Layer 250 microns minimum

Service Life 30+ years in most soils

GI Chemical Earthing Pipe

Advanced chemical earthing solutions for improved conductivity.

Material Hot Dip Galvanized Iron

Standard Sizes 2000mm x 50mm

Coating Thickness 80-100 microns

Chemical Fill Conductive minerals

Copper Bonded Chemical Earthing Pipe

Premium copper-bonded pipes for enhanced conduction and durability.

Material Copper Bonded Steel

Standard Sizes 2000mm x 50mm

Copper Layer 250-300 microns

Chemical Fill Conductive minerals

Bi-Metallic Sheet

Composite sheets combining the advantages of multiple metals.

Material Copper-Aluminum Composite

Standard Size 600mm x 600mm x 3mm

Conductivity 80% IACS

Standard Compliance IS 3043, IEEE 80

Earthing Lugs

High-quality copper and aluminum lugs for reliable earthing connections.

Material Copper, Aluminum, Tinned

Sizes 16-400 sq.mm

Connection Type Crimp, Compression

Standard Compliance IS 8337, IEC 61238

GI Angle

Sturdy galvanized angles for structural earthing requirements.

Material Hot Dip Galvanized Iron

Standard Sizes 40mm x 40mm x 5mm

Coating Thickness 85-90 microns

Standard Compliance IS 3043, BS 7430

Brass Sheet

Corrosion-resistant brass sheets with excellent electrical conductivity for specialized grounding applications.

Material Copper-Zinc Alloy (65/35)

Standard Sizes 600mm x 600mm x 1.5mm

Conductivity 28% IACS

Standard Compliance IS 3043, ASTM B36

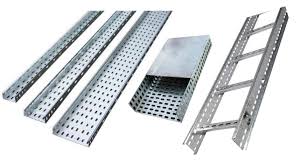

Cable Tray

Durable cable management trays for organized electrical installations.

Material Galvanized Steel

Standard Sizes Various dimensions

Load Capacity Heavy-duty

Electrical Cables

High-quality electrical cables for various power distribution applications.

Material Copper/Aluminum

Insulation XLPE/PVC

Voltage Rating Up to 1100V

Earthing Coal

Specialized carbon material for enhancing earthing conductivity in difficult soil conditions.

Material Carbon Compound

Resistivity Low

Application Earthing Enhancement

Earthing Salt

Chemical compound to improve soil conductivity for better earthing performance.

Material Conductive Salt Compound

Packaging 25kg Bags

Lifespan 5+ Years

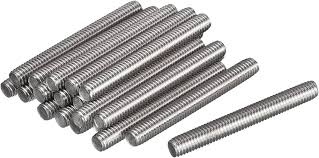

Thread Rod

Threaded rods for secure mounting and installation of earthing components.

Material Galvanized Steel/Stainless Steel

Sizes M8, M10, M12

Length 1m, 2m, 3m
